Copper melting mold
Copper melting mold is made of heat-resistant steel. It is usually used to cast copper molten liquid at high temperature into a trapezoidal copper ingot, which is conducive to storage and manufacturing. It has the advantages of good wear resistance and thermal conductivity, and long service life, and can also ensure the uniform distribution of copper liquid in the cooling and solidification process to avoid loss.
The design of this copper melting mold is conducive to handling, and it is an important mold for copper smelting and copper ingot casting. We have 1500-2000kg different capacities to choose from to meet production needs.
Description of Copper melting mold
Material: Heat-resistant steel.
Application: Copper smelting, Smelters, Metal Recycling plants, non-ferrous metals recycling plants, Aluminum bar producers, Primary Aluminum producers, Secondary Aluminum producers, Aluminum refineries etc.
Specification
|
|
Outside mold dimensions in millimeters |
Inside mold dimensions in millimeter |
Approx. Weight (lbs) |
||||
|
Width |
Length |
Height |
Width |
Length |
Height |
||
|
1200lb low profile |
1130 |
1485 |
290 |
1048 |
1378 |
239 |
1800 |
|
1200lb low profile w/fork pockets |
1130 |
1485 |
308 |
1048 |
1378 |
239 |
2000 |
|
1200lb high profile |
1016 |
1016 |
462 |
915 |
915 |
411 |
1630 |
|
1200lb high profile w/fork pockets |
1016 |
1016 |
475 |
915 |
915 |
411 |
1750 |
|
1500lb high profile |
1229 |
1411 |
349 |
1129 |
1310 |
299 |
2100 |
|
1500lb high profile w/fork pockets |
1229 |
1411 |
374 |
1129 |
1310 |
299 |
2400 |
|
2000lb high profile |
1254 |
1445 |
403 |
1152 |
1340 |
353 |
2400 |
|
2000lb high profile w/fork pockets |
1254 |
1445 |
429 |
1152 |
1340 |
353 |
2595 |
Advantages
Our free service hotline: 86 029 87607183
Easy to use
1
>>
Low maintenance
2
>>
Friendly weldability
3
>>
Cost Effective
4
>>
Increased yields
5
>>
Multiple cycle use
6
Production Process of Copper melting mold
Pouring out
Coloration detection the crack before ship
Grinding
Chemical composition, Mechanical properties, Geometrical characteristics Inspection
Sandblast

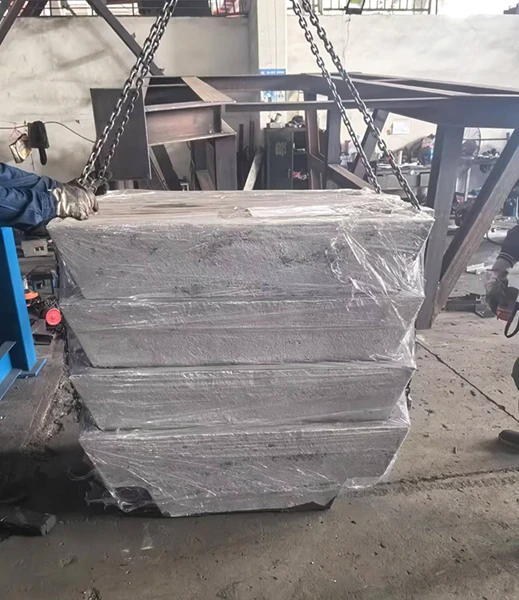

Packing
Inspection equipment
Foundry Introduction
Up to 4,000 metric tons of mechanical products annually
Over 1,200 different items
More than 20 years' manufacturing and export experience.
