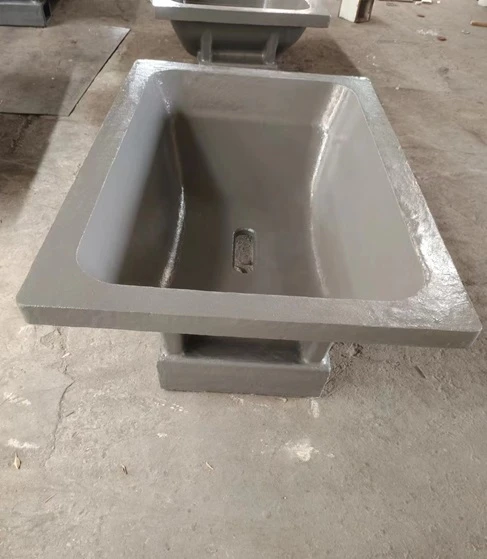

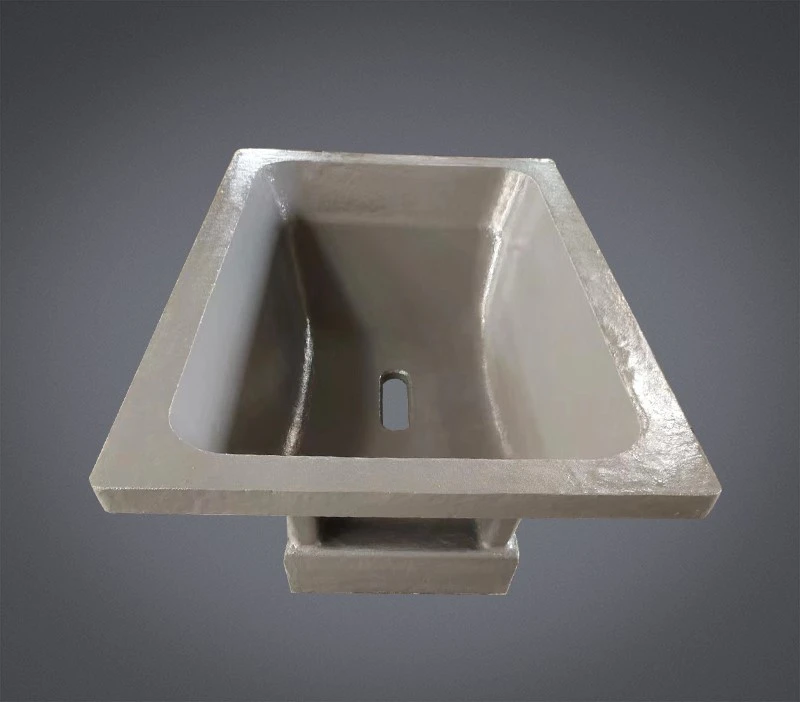

Slag and dross pan
Slag and dross pans are usually used for receiving and storing high-temperature liquid slag produced in steelmaking process. On the one hand, slag improves operation efficiency and ensures the purity of aluminum. On the other hand, it ensures the safety of the operator and reduces the impact on the environment.
This slag and dross pan is often used in combination with melting furnace or dross press, and has forklift hole design at the bottom, which can be transported by forklift, greatly reducing the workload of the operator and the risk. It can also ensure stable operation under high temperature, high pressure and strong corrosion environment, meeting the multiple needs of users for efficiency, safety and environmental protection.
Description of slag and dross pan
Material: HT anti-thermal shock proprietary material Duracast® for casthouse consumables
Application: Aluminum recycling, Aluminum smelters, Metal Recycling plants, non-ferrous metals recycling plants, Aluminum bar producers, Primary Aluminum producers, Secondary Aluminum producers, Aluminum refineries etc.
Advantages:
● Slag and dross pan offers the ability to efficiently process aluminum slag and dross, maximize the recovery of available aluminum and reduce raw material waste, thus helping to reduce the production cost of the aluminum plant.
● With superior Duracast® materials, slag and dross pan offer superior durability and high temperature performance, longer service life and reduced repair and replacement costs.
● The unique design, which can effectively remove waste, and easy operation characteristics can speed up the production process, reduce downtime, and improve production efficiency and capacity.
● By reducing raw material waste and improving resource availability, it can help aluminum mills achieve environmentally friendly production processes to meet environmental requirements.
● Slag and dross pan have certain capital investment in the early stage, but efficient production capacity and long life can obtain more returns and benefits.
If any interested, please tell us your dross situation, we can help you choose the right slag and dross pan according to your specific requirements!
Specification
|
|
Outside mold dimensions in millimeters |
Inside mold dimensions in millimeter |
Approx. Weight (lbs) |
||||
|
Width |
Length |
Height |
Width |
Length |
Height |
||
|
1200lb low profile |
1130 |
1485 |
290 |
1048 |
1378 |
239 |
1800 |
|
1200lb low profile w/fork pockets |
1130 |
1485 |
308 |
1048 |
1378 |
239 |
2000 |
|
1200lb high profile |
1016 |
1016 |
462 |
915 |
915 |
411 |
1630 |
|
1200lb high profile w/fork pockets |
1016 |
1016 |
475 |
915 |
915 |
411 |
1750 |
|
1500lb high profile |
1229 |
1411 |
349 |
1129 |
1310 |
299 |
2100 |
|
1500lb high profile w/fork pockets |
1229 |
1411 |
374 |
1129 |
1310 |
299 |
2400 |
|
2000lb high profile |
1254 |
1445 |
403 |
1152 |
1340 |
353 |
2400 |
|
2000lb high profile w/fork pockets |
1254 |
1445 |
429 |
1152 |
1340 |
353 |
2595 |
Advantages
Our free service hotline: 86 029 87607183
Ease use
1
>>
Low maintenance
2
>>
Friendly weldability
3
>>
Cost Effective
4
>>
Increased yields
5
>>
Multiple cycle use
6
Production Process of slag and dross pan
Pouring out
Coloration detection the crack before ship
Grinding
Chemical composition, Mechanical properties, Geometrical characteristics Inspection
Sandblast
Packing
Inspection equipment
Foundry Introduction
Up to 4,000 metric tons of mechanical products annually
Over 1,200 different items
More than 29 years' manufacturing and export experience.
