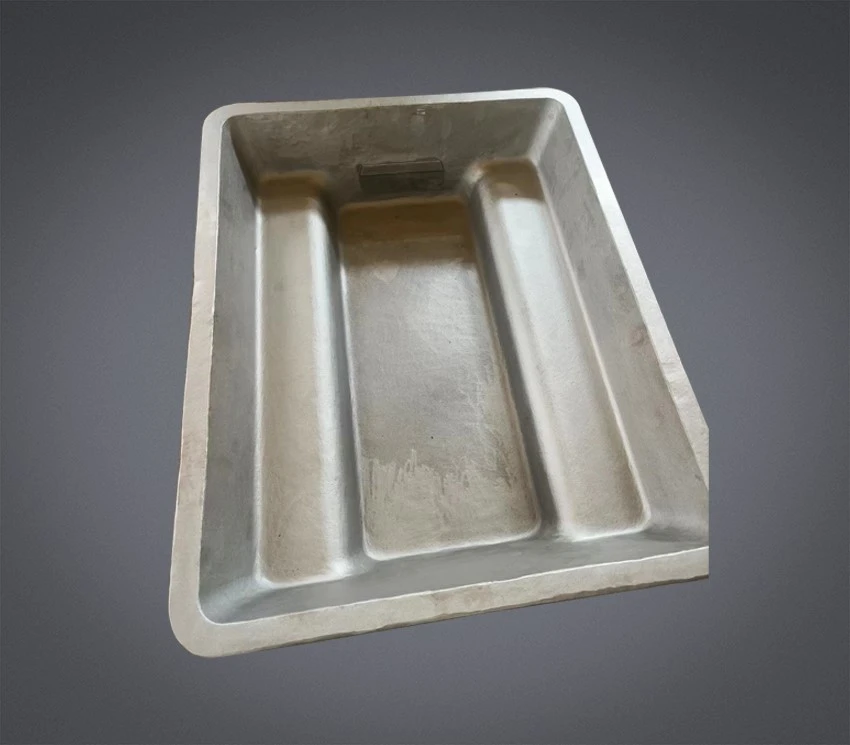

T-type ingot sow mold
For T-type ingot sow mold material selection: according to different production application requirements, you can choose different materials, such as ductile iron, cast steel, or alloy steel. The choice of material affects the strength, wear resistance and corrosion resistance of the sow molds.
Adopt ASTM A27 Grade 65-35 material grade, it makes T-type ingot sow mold more strong and durable, and is also suitable for some demanding engineering applications.
The applicability of sand casting process to manufacture sow mold is relatively strong, suitable for a variety of materials and specifications, and the production cycle is short.
The surface treatment of T-type ingot sow mold is an important link to improve its corrosion resistance, oxidation resistance and beauty. Usually polishing, chrome plating, spraying and other methods are used for surface treatment to increase the lifespan and market competitiveness of sow molds.
Description of T-type ingot sow mold
Material: HT anti-thermal shock proprietary material for casthouse consumables
Application: Aluminum recycling, Aluminum smelters, Metal Recycling plants, non-ferrous metals recycling plants, Aluminum bar producers, Primary Aluminum producers, Secondary Aluminum producers, Aluminum refineries etc.
Specification
|
|
Outside mold dimensions in millimeters |
Inside mold dimensions in millimeter |
Approx. Weight (lbs) |
||||
|
Width |
Length |
Height |
Width |
Length |
Height |
||
|
1200lb low profile |
1130 |
1485 |
290 |
1048 |
1378 |
239 |
1800 |
|
1200lb low profile w/fork pockets |
1130 |
1485 |
308 |
1048 |
1378 |
239 |
2000 |
|
1200lb high profile |
1016 |
1016 |
462 |
915 |
915 |
411 |
1630 |
|
1200lb high profile w/fork pockets |
1016 |
1016 |
475 |
915 |
915 |
411 |
1750 |
|
1500lb high profile |
1229 |
1411 |
349 |
1129 |
1310 |
299 |
2100 |
|
1500lb high profile w/fork pockets |
1229 |
1411 |
374 |
1129 |
1310 |
299 |
2400 |
|
2000lb high profile |
1254 |
1445 |
403 |
1152 |
1340 |
353 |
2400 |
|
2000lb high profile w/fork pockets |
1254 |
1445 |
429 |
1152 |
1340 |
353 |
2595 |
Advantages
Our free service hotline: 86 029 87608173
Easy to use
1
>>
Low maintenance
2
>>
Friendly weldability
3
>>
Cost Effective
4
>>
Increased yields
5
>>
Multiple cycle use
6
Production Process of t-type ingot sow mold
Pouring out
Coloration detection the crack before ship
Grinding
Chemical composition, Mechanical properties, Geometrical characteristics Inspection
Sandblast
Packing
Inspection equipment
Foundry Introduction
Up to 4,000 metric tons of mechanical products annually
Over 1,200 different items
More than 20 years' manufacturing and export experience.
