1500lbs Low Profile Sow Mold

1500lbs Low Profile Sow Mold

1500lbs low profile sow mold is commonly used by aluminum mills to collect and transport aluminum to simplify traditional operating processes and improve production efficiency, ensuring the quality and uniformity of aluminum ingots.
♦ 1500lbs low profile sow mold for casting T-bar aluminum ingot, suitable for smelters, aluminum plants, foundries, etc.
♦ Made from the proprietary material Duracast® the sow mold's service life is extended
♦ Simple operation, high production efficiency
♦ To provide you with professional aluminum dross recycling solutions
1500lbs low profile sow mold

1500lbs low profile sow mold is an essential tool for aluminum plants. The collected liquid aluminum is cooled to form aluminum ingots, which can be used to cast large castings. It uses our proprietary material Duracast®, which is more resistant to wear and lasts longer than the sow mold on the market, and the surface is polished to ensure that the aluminum ingots are flawless. The low profile is suitable for use in small spaces and is easy to transport.



● The use of our patented materials can prolong the service life, and at the same time, it is not easy to deform when used at high temperature for a long time, reducing the replacement frequency of sow mold and reducing the operating cost of the aluminum plant.

● 1500lbs low profile sow mold profile design precision, ensure the unity of aluminum ingot. And the polished surface reduces the rate of defective products and the need for secondary processing, thus saving resources and improving the overall production efficiency.

● Easy to operate, small footprint.



1500lbs low profile sow mold is a durable, convenient and efficient sow mold. The aluminum plant uses it to ensure the unity of aluminum ingots, improve production efficiency and convenient operation, and bring more benefits to the aluminum plant.

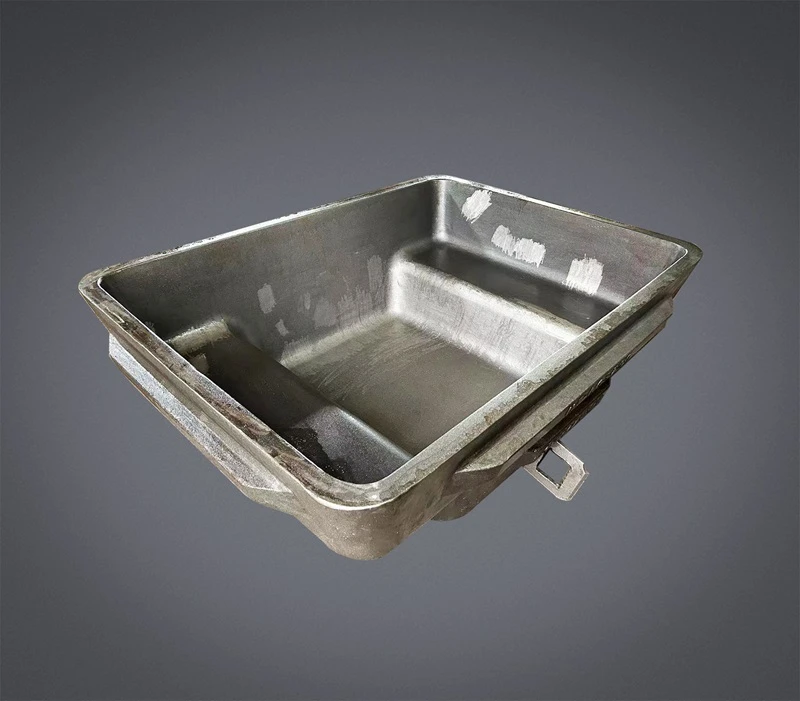

1500lbs low profile sow mold 2



Description of 1500lbs low profile sow mold



Material: HT anti-thermal shock proprietary material Duracast® for casthouse consumables

Application: Aluminum recycling, Aluminum smelters, Metal Recycling plants, non-ferrous metals recycling plants, Aluminum bar producers, Primary Aluminum producers, Secondary Aluminum producers, Aluminum refineries etc.



Specification



product-865-369



Outside mold dimensions in millimeters

Inside mold dimensions

in millimeter

Approx.

Weight (lbs)

Width

Length

Height

Width

Length

Height

1200lb low profile

1130

1485

290

1048

1378

239

1800

1200lb low profile w/fork pockets

1130

1485

308

1048

1378

239

2000

1200lb high profile

1016

1016

462

915

915

411

1630

1200lb high profile w/fork pockets

1016

1016

475

915

915

411

1750

1500lb high profile

1229

1411

349

1129

1310

299

2100

1500lb high profile w/fork pockets

1229

1411

374

1129

1310

299

2400

2000lb high profile

1254

1445

403

1152

1340

353

2400

2000lb high profile w/fork pockets

1254

1445

429

1152

1340

353

2595



Advantages

Our free service hotline: 86 029 87608173

Easy to use

1

>>

Low maintenance

2

>>

Friendly weldability

3

>>

Cost Effective

4

>>

Increased yields

5

>>

Multiple cycle use

6



Production Process of 1500lbs low profile sow mold



aluminum sow 55

Pouring out

aluminum sow molds 22

Coloration detection the crack before ship

sow mould 4

Grinding

sow molds 4

Chemical composition, Mechanical properties, Geometrical characteristics Inspection

sow molds 55

Sandblast

sow molds 66

Packing



Inspection equipment
sow molds 1
Spectrometer
sow molds 2
Material Mechanical Property Tester
sow molds 3
Impact Testing Machine
sow molds 44
Metallographic microscope
sow molds 55
CMM
sow molds 6
NDT
sow molds 7
Press Machine
sow molds 8
Brinell Hardness Tester
sow molds 9
Caliper & Gauge
sow molds 10
Two-dimensional projectors





Foundry Introduction

product-1000-628





Why Huan-Tai's 1500lbs low profile sow mold?

Up to 4,000 metric tons of mechanical products annually
Over 1,200 different items
More than 29 years' manufacturing and export experience.
