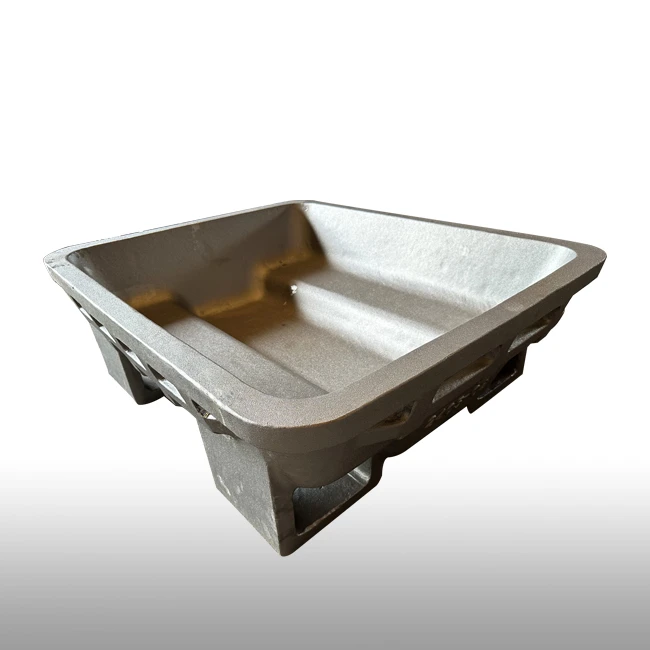

2000lbs High Profile Sow Mold With Forklift Pocket

2000lbs High Profile Sow Mold With Forklift Pocket

2000lbs high profile sow mold with forklift pocket is specially designed to improve and simplify the complex production procedures of smelters. It can withstand high temperature environment and long-term stable operation, which helps enterprises reduce operating costs and obtain more economic benefits.
♦ For smelters, foundries to produce large size parts
♦ Alloy steel material, with higher corrosion resistance and high temperature resistance, suitable for manufacturing large size and more complex castings
♦ The weight is 2000lbs
♦ Support customized services
2000lbs high profile sow mold with forklift pocket

The 2000lbs high profile sow mold with forklift pocket can be used to produce large size castings, ensuring the accuracy of the castings and having good reliability.



A forklift hole is designed at the bottom of sow mold to facilitate the use of forklift transportation, prevent the external splashing of high-temperature aluminum slag, reduce the risk in manual handling, and improve the production efficiency.



2000lbs high profile sow mold with forklift pocket is made of alloy steel material, it can maintain stable operation in high temperature environment, and has good high temperature resistance, corrosion resistance and durability. At the same time, its durability ensures that the sow mold has a longer service life than other materials, reducing the frequency of replacement, but its cost is relatively high.



The 2000lbs high profile sow mold with forklift pocket is a aluminum recycling equipment with high recovery, high capacity and high reliability, which can effectively improve the amount of aluminum recovery, up to more than 90%. Although there is a relatively high investment in the early stage, it can be repaid in a very short time, which can create more profits for the smelter and also play a certain role in protecting the environment.

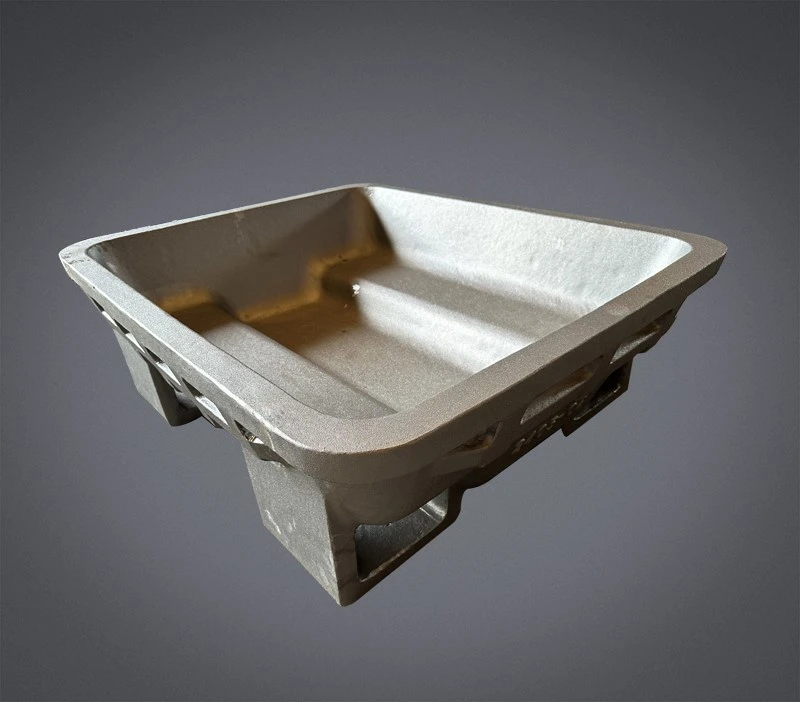

2000lbs High Profile Sow Mold With Forklift Pocket 2



Description of 2000lbs high profile sow mold with forklift pocket



Material: Alloy Steel

Application: Aluminum recycling, Aluminum smelters, Metal Recycling plants, non-ferrous metals recycling plants, Aluminum bar producers, Primary Aluminum producers, Secondary Aluminum producers, Aluminum refineries etc.



Specification



product-865-369



Outside mold dimensions in millimeters

Inside mold dimensions

in millimeter

Approx.

Weight (lbs)

Width

Length

Height

Width

Length

Height

1200lb low profile

1130

1485

290

1048

1378

239

1800

1200lb low profile w/fork pockets

1130

1485

308

1048

1378

239

2000

1200lb high profile

1016

1016

462

915

915

411

1630

1200lb high profile w/fork pockets

1016

1016

475

915

915

411

1750

1500lb high profile

1229

1411

349

1129

1310

299

2100

1500lb high profile w/fork pockets

1229

1411

374

1129

1310

299

2400

2000lb high profile

1254

1445

403

1152

1340

353

2400

2000lb high profile w/fork pockets

1254

1445

429

1152

1340

353

2595



Advantages

Our free service hotline: 86 029 87607183

Easy to use

1

>>

Low maintenance

2

>>

Friendly weldability

3

>>

Cost Effective

4

>>

Increased yields

5

>>

Multiple cycle use

6



Production Process of 2000lbs high profile sow mold with forklift pocket



aluminum sow 55

Pouring out

aluminum sow molds 22

Coloration detection the crack before ship

sow mould 4

Grinding

sow molds 4

Chemical composition, Mechanical properties, Geometrical characteristics Inspection

sow molds 55

Sandblast

sow molds 66

Packing



Inspection equipment
sow molds 1
Spectrometer
sow molds 2
Material Mechanical Property Tester
sow molds 3
Impact Testing Machine
sow molds 44
Metallographic microscope
sow molds 55
CMM
sow molds 6
NDT
sow molds 7
Press Machine
sow molds 8
Brinell Hardness Tester
sow molds 9
Caliper & Gauge
sow molds 10
Two-dimensional projectors





Foundry Introduction

product-1000-628





Why Huan-Tai's 2000lbs high profile sow mold with forklift pocket?

Up to 4,000 metric tons of mechanical products annually
Over 1,200 different items
More than 20 years' manufacturing and export experience.
