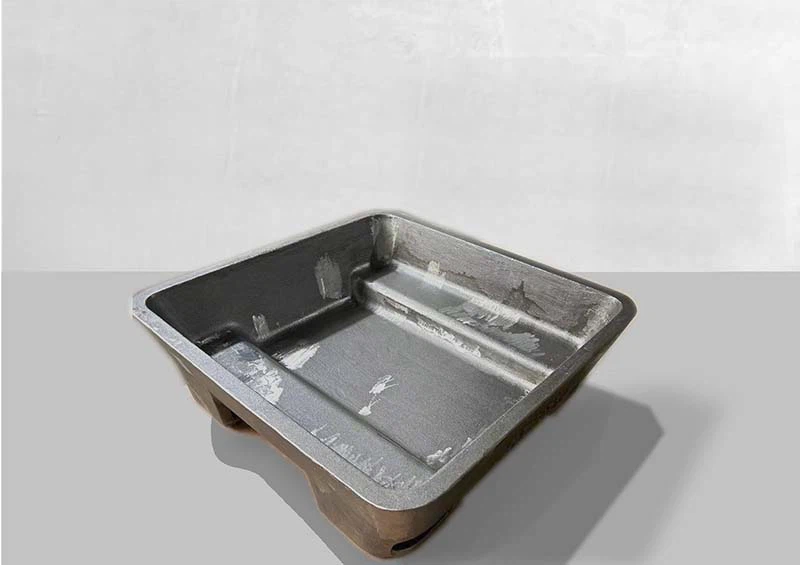

Aluminum sow molds

We produce aluminum sow molds with a wide range of standard low-profile and high-profile, and with or without fork pockets as in the table below. Our sow molds are casted from a proprietary material, the material is developed on our own to provide very good durability.

In addition to our proprietary material, we also supply other conventional steel molds and ductile iron molds, the material will be ASTM A27 Gr 70-40, ASTM A148 Gr 105-85, AISI 8630, GGG-40, GGG-50, and other materials that customers want, contact us to find the best solution for your company.

learn more

Description of aluminum sow molds

Material: HT anti-thermal shock proprietary material for casthouse consumables

Application: Aluminum recycling, Aluminum smelters, Metal Recycling plants, non-ferrous metals recycling plants, Aluminum bar producers, Primary Aluminum producers, Secondary Aluminum producers, Aluminum refineries etc.

Specification

product-865-369

	Outside mold dimensions in millimeters			Inside mold dimensions in millimeter			Approx. Weight (lbs)
	Width	Length	Height	Width	Length	Height	Approx. Weight (lbs)
1200lb low profile	1130	1485	290	1048	1378	239	1800
1200lb low profile w/fork pockets	1130	1485	308	1048	1378	239	2000
1200lb high profile	1016	1016	462	915	915	411	1630
1200lb high profile w/fork pockets	1016	1016	475	915	915	411	1750
1500lb high profile	1229	1411	349	1129	1310	299	2100
1500lb high profile w/fork pockets	1229	1411	374	1129	1310	299	2400
2000lb high profile	1254	1445	403	1152	1340	353	2400
2000lb high profile w/fork pockets	1254	1445	429	1152	1340	353	2595
