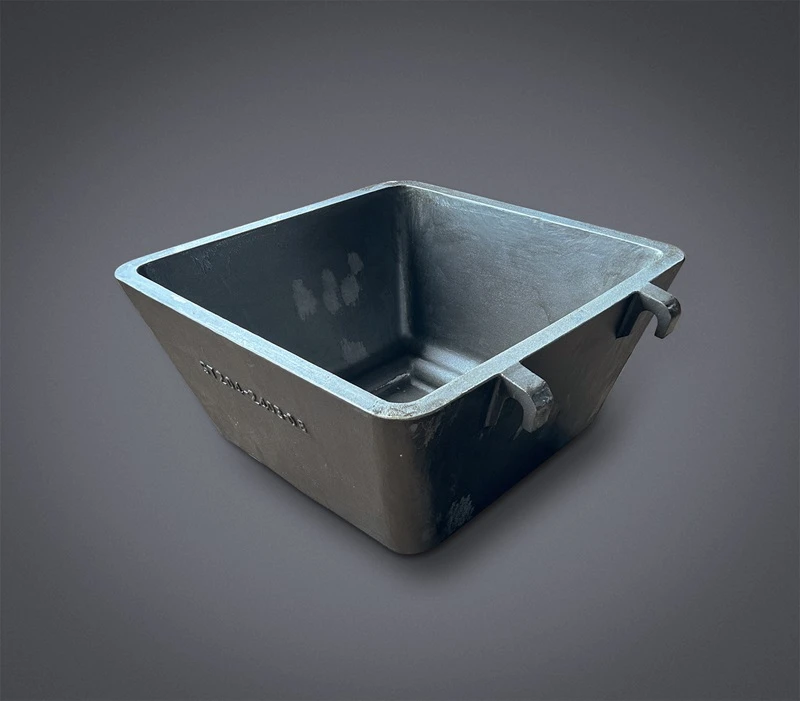

Alloy Steel Sow Mold
Our alloy steel sow mold adopts our proprietary material, which has the characteristics of high strength and wear resistance, long service life etc., can cope with various requirements under high temperature and high pressure environment, and can be used to produce various alloy steel products, such as bearings, gears and other parts, industrial machinery castings.
Meantime, we designed a variety of different sizes of alloy steel sow mold to adapt to different application, ensure the uniformity and quality of castings during the pouring process, meet the application requirements and standards, and meet customer expectations.
Description
Material: HT anti-thermal shock proprietary material for casthouse consumables
Application: Aluminum recycling, Aluminum smelters, Metal Recycling plants, non-ferrous metals recycling plants, Aluminum bar producers, Primary Aluminum producers, Secondary Aluminum producers, Aluminum refineries etc.
Specification
|
|
Outside mold dimensions in millimeters |
Inside mold dimensions in millimeter |
Approx. Weight (lbs) |
||||
|
Width |
Length |
Height |
Width |
Length |
Height |
||
|
1200lb low profile |
1130 |
1485 |
290 |
1048 |
1378 |
239 |
1800 |
|
1200lb low profile w/fork pockets |
1130 |
1485 |
308 |
1048 |
1378 |
239 |
2000 |
|
1200lb high profile |
1016 |
1016 |
462 |
915 |
915 |
411 |
1630 |
|
1200lb high profile w/fork pockets |
1016 |
1016 |
475 |
915 |
915 |
411 |
1750 |
|
1500lb high profile |
1229 |
1411 |
349 |
1129 |
1310 |
299 |
2100 |
|
1500lb high profile w/fork pockets |
1229 |
1411 |
374 |
1129 |
1310 |
299 |
2400 |
|
2000lb high profile |
1254 |
1445 |
403 |
1152 |
1340 |
353 |
2400 |
|
2000lb high profile w/fork pockets |
1254 |
1445 |
429 |
1152 |
1340 |
353 |
2595 |
Advantages
Our free service hotline: 86 029 87608173
Ease use
1
>>
Low maintenance
2
>>
Friendly weldability
3
>>
Cost Effective
4
>>
Increased yields
5
>>
Multiple cycle use
6
Production Process of alloy steel sow mold
Pouring out
Coloration detection the crack before ship
Grinding
Chemical composition, Mechanical properties, Geometrical characteristics Inspection
Sandblast
Packing
Inspection equipment
Foundry Introduction
Up to 4,000 metric tons of mechanical products annually
Over 1,200 different items
More than 20 years' manufacturing and export experience.
