The slag bin is a storage and treatment container designed for waste slag treatment, improving work efficiency while providing a guarantee for safety and the environment. Huantai can also provide you with a variety of different specifications of slag bin, dross pan, sow mold and other smelting equipment, can also be customized according to your production scale needs, to ensure seamless integration with your production process
► How is molten slag transported from furnaces?
There are two main methods to transfer hot liquid slag from smelting furnaces:
Slag Pot Transfer: Molten slag is ladled by a crane into massive reinforced slag pots. Once filled, bottom-pouring pots are taken to the slag processing area. Molten slag may be granulated or solidified before transport to reduce its temperature and make handling safer. This can be achieved by spraying water or other cooling agents onto the molten slag, creating granules or pellets that are easier to handle and transport.
Slag Rail Cars: Ladles fill specialized rail cars lined with refractory bricks. Locomotives transport the loaded cars to the slag yard. Where the slag flows under gravity or is pumped to a separate processing or disposal facility. This method is more commonly used in continuous casting processes or integrated steel plants where slag is continuously produced.
Molten slag can reach temperatures up to 3000°F (1650°C), so transfer vessels must withstand extreme heat. Smooth transfer is vital to avoid spills and accidents around the dangerous molten material.
Robust slag pots and rail cars are designed to safely contain thousands of pounds of red-hot liquid slag during transport. The transportation of molten slag is a crucial part of the metallurgical process, and careful consideration must be given to safety, efficiency, and environmental impact when choosing the appropriate transportation method.
► Where is slag taken for cooling and processing?
After leaving the furnaces, slag needs to cool and solidify before further handling. It is taken to the slag processing yard.
◇ Dedicated slag pits provide a controlled area for dumping and cooling slag.
◇ Once cooled, the solid mass can be broken up and processed as needed.
◇ May involve crushing, screening, magnets, sizing, and classification.
◇ Residual metallic content can be recovered from the slag material.
◇ Yields saleable granular slag products and prepared scrap metal fractions.
This comprehensive approach yields saleable granular slag products and prepared scrap metal fractions, making the entire process cost-effective and environmentally sustainable. Careful cooling and processing convert molten slag into stable materials for reuse. By carefully cooling and processing molten slag, it is transformed into stable materials suitable for reuse in various applications, contributing to resource efficiency and waste reduction in industrial operations.
► How does the slag bin play an integral role?

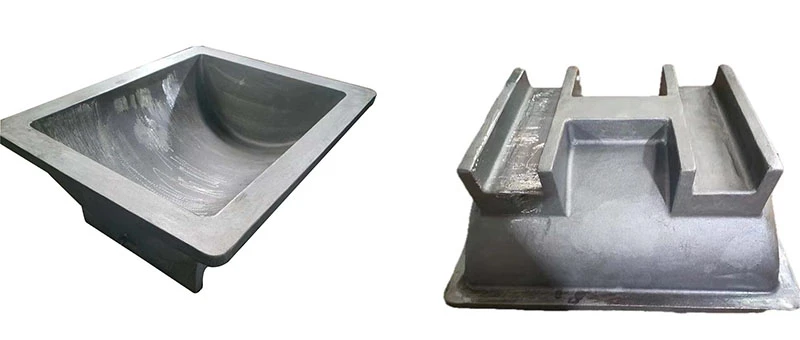

The Slag bin provides large-volume receptacles between the furnace and the processor.
The slag bin is a crucial component in the processing of molten slag from furnaces. These reinforced steel bins with refractory linings can withstand the high temperatures of molten slag and provide large-volume receptacles between the furnace and the processor. As incoming slag pots or cars arrive, they discharge their contents into the product, where the slag is held until it is ready for further processing. With typical capacities of 20 tons or more, these bins are designed with bottom-opening gates that allow for controlled pouring. The bins are elevated on concrete foundations at a height that is convenient for the slag pots, and they are set up in the slag yard aligned with the processing equipment.
As a crucial buffer, the slag bin enables smooth operations between the furnaces and processors. The ability to store and control the flow of slag allows for a continuous production process, reducing downtime and improving overall efficiency. As such, the product is an essential component of modern steelmaking facilities, enabling them to meet the demands of a rapidly evolving industry. Their presence is indispensable in modern steelmaking facilities, where they play a key role in meeting the evolving demands of the industry.
► What types of slag get recycled for other applications?
Thanks to slag processing, recovered slag fractions can find secondary uses:
Air-cooled slag: Crushed products used as aggregates in concrete, asphalt, etc.
Granulated slag: Glassy pellets used as cement supplement, and sandblasting abrasive.
Pelletized slag: Formed into a lightweight aggregate.
Metallic granules: Iron and other metal oxides are reclaimed.
Miscellaneous slag products find use as railroad ballast, roofing granules, soil amendment, etc.
Thanks to slag processing, various types of slag can be recycled for a range of applications. The different forms of slag that are commonly reused include air-cooled slag, which is crushed and used as aggregates in concrete and asphalt; granulated slag, which is transformed into glassy pellets for use as a cement supplement and sandblasting abrasive; pelletized slag, which is shaped into a lightweight aggregate; metallic granules, where iron and other metal oxides are reclaimed; and miscellaneous slag products that are utilized as railroad ballast, roofing granules, soil amendments, and more. By utilizing a slag bin, the efficient recycling of these slag byproducts is facilitated, preventing them from going to waste. Our slag bins have been carefully designed and manufactured, Huantai will be a good choice for you, contact us at tech@huan-tai.org.
