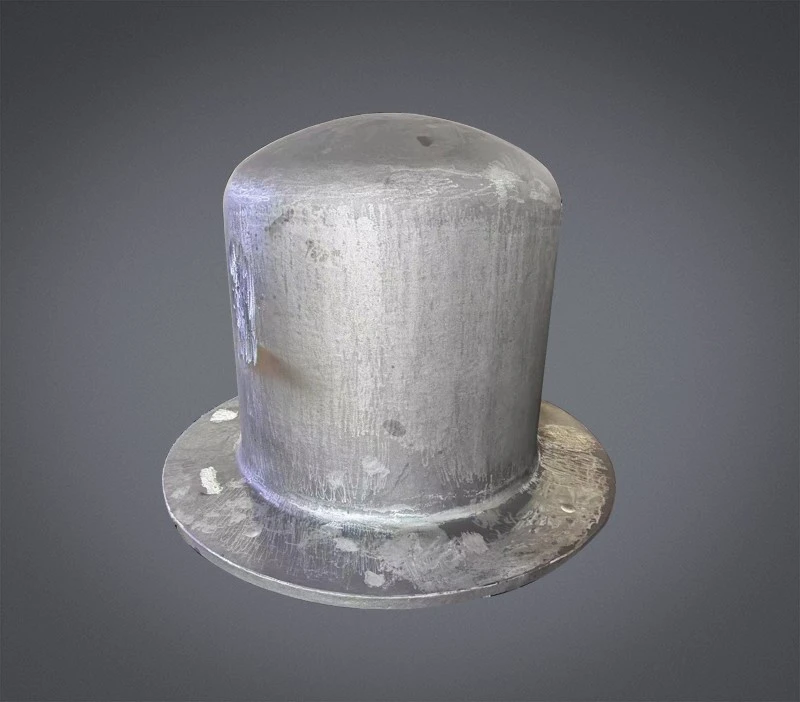

magnesium smelting crucible

As an important equipment in magnesium smelting process, the crucible needs to work in a high temperature environment for a long time, so the screening, ratio and manufacturing process of raw materials are key factors, and different raw material ratios will affect the performance and service life of magnesium smelting crucible.

This magnesium melting crucible is mainly made of carbon-silicon composite material, with excellent high temperature resistance, thermal conductivity and resistance to magnesium chemical corrosion properties, making it in the harsh melting environment can still maintain structural integrity. But its manufacturing cost is high, and it is easy to be subjected to thermal shock and mechanical shear.

learn more

Description of magnesium smelting crucible

Material: HT anti-thermal shock proprietary material for casthouse consumables

Application: Aluminum recycling, Aluminum smelters, Metal Recycling plants, non-ferrous metals recycling plants, Aluminum bar producers, Primary Aluminum producers, Secondary Aluminum producers, Aluminum refineries etc.

Advantages of magnesium melting crucible

◎ Excellent thermal conductivity speeds up the melting speed, short heating time and low energy consumption to improve production efficiency.

◎ High quality anti-oxidation and anti-corrosion materials are used to reduce the chemical reaction with the molten liquid and extend the service life of the crucible.

◎ The high purity crucible material can effectively reduce the impurity pollution in the smelting process to ensure the purity of magnesium alloy.

◎ Available in a variety of sizes and shapes to accommodate large smelters, or small experimental smelters.

Specification

product-865-369

	Outside mold dimensions in millimeters			Inside mold dimensions in millimeter			Approx. Weight (lbs)
	Width	Length	Height	Width	Length	Height	Approx. Weight (lbs)
1200lb low profile	1130	1485	290	1048	1378	239	1800
1200lb low profile w/fork pockets	1130	1485	308	1048	1378	239	2000
1200lb high profile	1016	1016	462	915	915	411	1630
1200lb high profile w/fork pockets	1016	1016	475	915	915	411	1750
1500lb high profile	1229	1411	349	1129	1310	299	2100
1500lb high profile w/fork pockets	1229	1411	374	1129	1310	299	2400
2000lb high profile	1254	1445	403	1152	1340	353	2400
2000lb high profile w/fork pockets	1254	1445	429	1152	1340	353	2595
