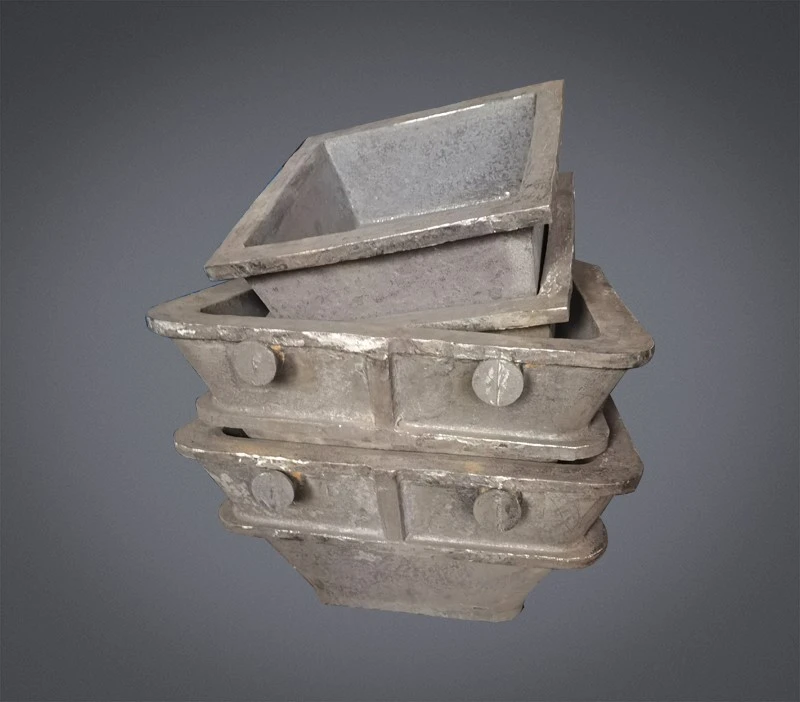

Slag pan of aluminum recovery

Slag pan is the essential vessel used in metal smelting lines to mold molten aluminum into standard aluminum ingots for easy storage, transportation, and further processing.

1. Our ingot moulds are usually cast steel ASTM A27 Grade 65-35, or our proprietary material 8630 WCB 9, which can effectively extend the service life of molds.

2. In addition, we can design and customize moulds suitable for production according to customers' requirements on materials, size, shape and other specifications as well as drawings, so as to meet customers' expectations.

3. AL.ST can provide excellent after-sales service, the use of the process of the problem, we have a professional technical team can help you deal with in time, to provide you with professional solutions to ensure a good experience.

learn more

Application

Material: HT anti-thermal shock proprietary material for casthouse consumables, and other material can also available.

Application: Aluminum recycling, Aluminum smelters, Metal Recycling plants, non-ferrous metals recycling plants, Aluminum bar producers, Primary Aluminum producers, Secondary Aluminum producers, Aluminum refineries etc.

Specification

product-865-369

	Outside mold dimensions in millimeters			Inside mold dimensions in millimeter			Approx. Weight (lbs)
	Width	Length	Height	Width	Length	Height	Approx. Weight (lbs)
1200lb low profile	1130	1485	290	1048	1378	239	1800
1200lb low profile w/fork pockets	1130	1485	308	1048	1378	239	2000
1200lb high profile	1016	1016	462	915	915	411	1630
1200lb high profile w/fork pockets	1016	1016	475	915	915	411	1750
1500lb high profile	1229	1411	349	1129	1310	299	2100
1500lb high profile w/fork pockets	1229	1411	374	1129	1310	299	2400
2000lb high profile	1254	1445	403	1152	1340	353	2400
2000lb high profile w/fork pockets	1254	1445	429	1152	1340	353	2595
